Chicago Metallic® 1260 Aluminum Cap 15/
The Chicago Metallic® 1260 Aluminum Cap 15/16" fire-rated system features an HDG-30 steel base metal and an aluminum cap for enhanced corrosion resistance and cleanability. This system is ideal for areas with high cleanability and sanitary requirements.
1/3
Application
- Product Type
- Grid suspension systems
- Performance
- Seismic
- GREENGUARD Gold
Product Description
The Chicago Metallic® 1260 Aluminum Cap 15/16" exposed fire-rated system features an HDG-30 steel base metal and an aluminum cap for upgraded corrosion resistance in interior environments. This acoustical suspension system uses seismically compliant stab-end cross tees for a quick and easy ceiling assembly. Chicago Metallic grid systems are certified to meet ASTM standards and are listed with ICCES Evaluation Services, under report ESR-2631.
- Aluminum capping delivers enhanced corrosion resistance and cleanability
- Suitable for seismic zones A-F
- Backed by a 40 year warranty
- UL GREENGUARD Gold certified for low VOC emissions
- Sustainable: Steel - 30% , Aluminum - 78% recycled content, 100% locally recyclable
Certifications
UL GREENGUARD Gold
Environmental Product Declaration
Documents

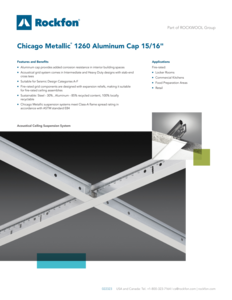

Chicago Metallic 1260 Aluminum Cap Data Sheet
Product and technical information for Chicago Metallic 1260 Aluminum Cap 15/16" grid
Interior Installation Guide for Standard 15/
Installation guide for Chicago Metallic 15/16" and 9/16" standard grid systems
Chicago Metallic 1260 Aluminum Cap 15/
Specification document for Chicago Metallic 1260 Aluminum Cap 15/16" grid
Seismic Ceiling Suspension Guide
Technical document for Chicago Metallic grid suspension in seismic applications
UL Fire Rated Assemblies for Chicago Metallic Grid Suspension Systems
Technical guide for UL fire rated assemblies utilizing Chicago Metallic grid suspension
Related Products
Performance
Chicago Metallic® 830 All Aluminum 15/
Chicago Metallic® 830 All Aluminum 15/16" Exposed grid ceiling system uses a light-duty design and is created using 100% aluminum, giving the acoustical grid system increased corrosion resistance in harsh interior environments. Application areas include food and drug preparation, laboratories, or laundries.
Product Type
Chicago Metallic® 260 Aluminum Cap 15/
This grid system is available in both intermediate and heavy duty designs with hook-end cross tees. This fire-rated system is ideal for locker rooms, commercial kitchens and food preparation areas, and retail applications.
Performance
Chicago Metallic® G90 15/
Chicago Metallic® G90 Exposed Grid System 15/16" is available in a heavy-duty design, and is built with HDG 90 steel, making this an ideal fit when humidity and corrosion resistance is required
FAQ Block For Grid
It is a ceiling hung below the structural ceiling for room acoustics and aesthetics, where tiles and panels are housed in the ceiling grid. An acoustical ceiling grid has various benefits that include controlling sound, which is measured by the Noise Reduction Coefficient (NRC). High-performance acoustic panels from Rockfon offer the NRC needed to create healthy acoustic environments. Ceiling tile grid systems also hide various building systems while still allowing access for maintenance.
Ceiling grids used with tiles and panels are a cost-effective ceiling solution. Contact us to speak with a Rockfon representative to learn more about suspended ceiling cost.
Depending on the grid product, Rockfon Chicago Metallic ceiling grids can be used in interior & exterior applications. Review the datasheet for specific products to determine exact application areas.
Before installing tiles into a grid system, always ensure your installation is square and all components are installed correctly. Questions? Contact our technical services team and a Rockfon team member will address your questions.
We’re happy to work with you to find where to buy Rockfon products. Get in touch with us.
Stone wool acoustic ceiling tiles & panels have an inherently high Noise Reduction Coefficient due to the structure and composition of stone wool. When installed in a suspended ceiling grid, these tile & panels support a healthy interior acoustic environment. Metal ceiling solutions in interior applications can achieve a high-NRC through perforations or with the Rockfon Acoutex™ acoustic backer applied. An environment with the right acoustic performance products can improve speech intelligibility and overall indoor environmental quality (IEQ) to support human health and well-being.
Every Rockfon tile and pile has its compatible grid type. Review the stone wool & metal product datasheets for the full listing of grid compatibility.
Our acoustic ceiling tiles are available in a wide variety of edge types. These ceiling tile types include square lay-in, square or angled tegular/reveal, and concealed or semi-concealed edges.
Coupled with different suspension systems, the edge design can help to hide the grid with tightly fitted panels, shadow the grid with beveled recesses, conceal the grid with panels that seem to float under it, or emphasize the grid with square or angled tegular/reveal designs.
Contact a Sales Representative, Find a Distributor & Grid Installation
Find A Sales Representative
Connect with your local Rockfon sales representative for personalized support, expert guidance, and solutions tailored to your project needs.
Find a Distributor
Find a Rockfon distributor in your area with access to the Rockfon catalog.
Grid Instalation
Suspended ceiling tile installation relies on the support network provided by the metal ceiling suspension system. The dropped ceiling grid layout may be exposed or concealed. In addition to serving as the framework for dropped ceiling tiles, suspension systems also can be specified for drywall installations.
