Chicago Metallic® BarrierGrid®
The Chicago Metallic® BarrierGrid® system is manufactured with a factory-applied gasket to restrict airflow between the plenum and room, making this ideal for controlled environments, such as cleanrooms or hospital applications.
1/3
Application
- Performance
- Clean room
- Sectors
- Cleanroom
- Product Type
- Grid suspension systems
- Healthcare
Product Description

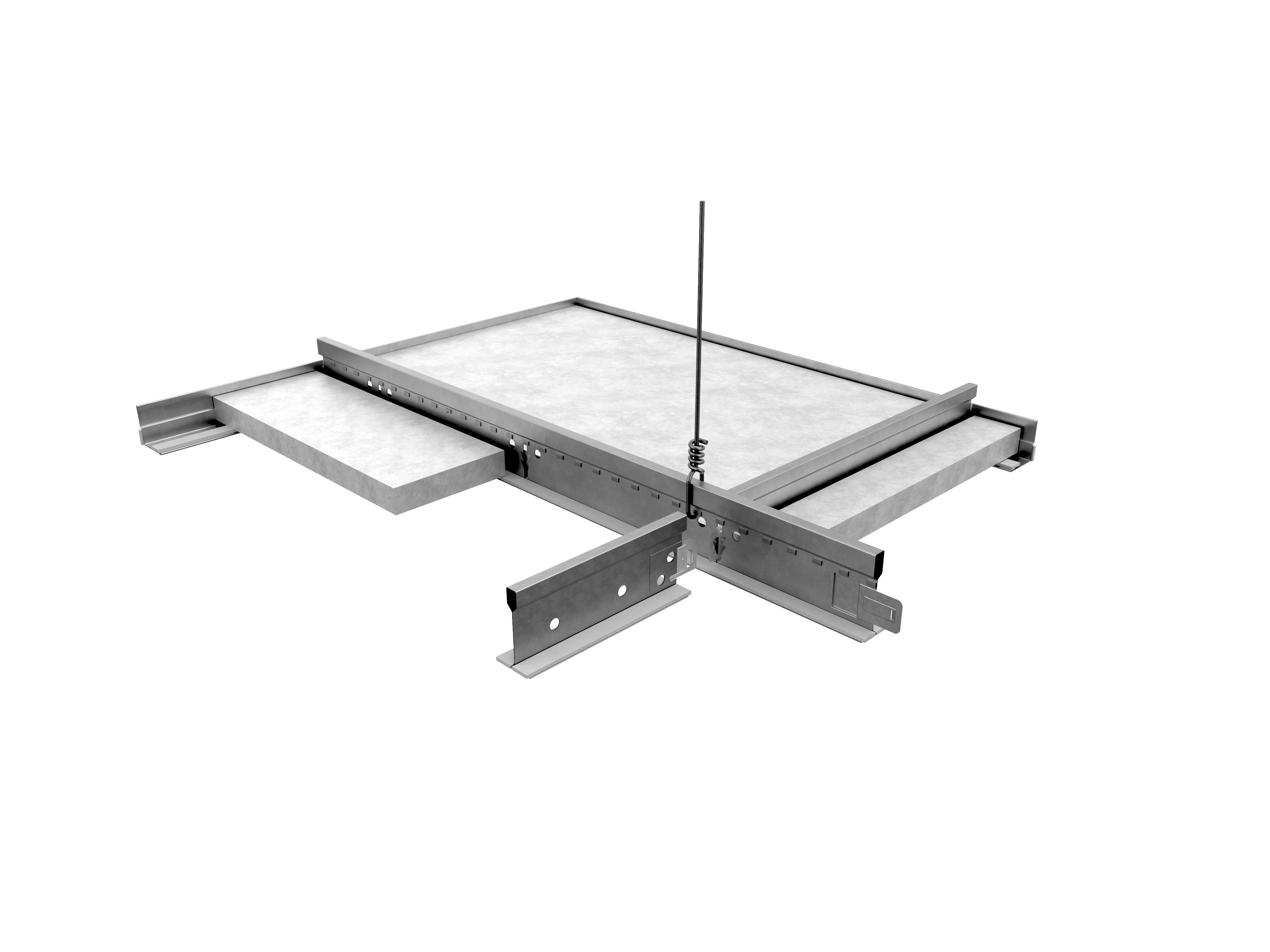

Chicago Metallic® BarrierGrid® Standard 15/16" Exposed Gasketed ceiling grid system is available in a heavy-duty design, built with HDG 30 steel and an aluminum cap. This cleanroom grid system is available in both seismically approved stab-end cross tees and demountable hook-end cross. Main runners and cross tees feature a factory-applied gasket to restrict airflow between the plenum and the room. Chicago Metallic grid systems are certified to meet ASTM standards and are listed with ICCES Evaluation Services, under report ESR-2631.
- Factory precision applied gasket grid restricts air movement between plenum and room
- Aluminum capped runners and tees improve corrosion resistance of gasketed ceiling grid system
- Acoustical grid system features a Heavy-Duty design, available with stab-end or hook-end cross tees
- Suitable for Seismic Design Categories A-F
- Components and assemblies designed for use in ISO 14644-1 controlled environment facilities
- Sustainable: Steel - 30%, Aluminum - 78% recycled content, 100% locally recyclable
Certifications
UL GREENGUARD Gold
Environmental Product Declaration
Documents
Chicago Metallic BarrierGrid Data Sheet
Product and technical information for Chicago Metallic BarrierGrid
Chicago Metallic BarrierGrid Specification
Specification document for Chicago Metallic BarrierGrid
Seismic Ceiling Suspension Guide
Technical document for Chicago Metallic grid suspension in seismic applications
Chicago Metallic BarrierGrid Data Sheet (French)
Product and technical information for Chicago Metallic BarrierGrid
Chicago Metallic BarrierGrid Specification (CDN)
Specification document for Chicago Metallic BarrierGrid (CDN)
FAQ Block For Grid
It is a ceiling hung below the structural ceiling for room acoustics and aesthetics, where tiles and panels are housed in the ceiling grid. An acoustical ceiling grid has various benefits that include controlling sound, which is measured by the Noise Reduction Coefficient (NRC). High-performance acoustic panels from Rockfon offer the NRC needed to create healthy acoustic environments. Ceiling tile grid systems also hide various building systems while still allowing access for maintenance.
Ceiling grids used with tiles and panels are a cost-effective ceiling solution. Contact us to speak with a Rockfon representative to learn more about suspended ceiling cost.
Depending on the grid product, Rockfon Chicago Metallic ceiling grids can be used in interior & exterior applications. Review the datasheet for specific products to determine exact application areas.
Before installing tiles into a grid system, always ensure your installation is square and all components are installed correctly. Questions? Contact our technical services team and a Rockfon team member will address your questions.
We’re happy to work with you to find where to buy Rockfon products. Get in touch with us.
Stone wool acoustic ceiling tiles & panels have an inherently high Noise Reduction Coefficient due to the structure and composition of stone wool. When installed in a suspended ceiling grid, these tile & panels support a healthy interior acoustic environment. Metal ceiling solutions in interior applications can achieve a high-NRC through perforations or with the Rockfon Acoutex™ acoustic backer applied. An environment with the right acoustic performance products can improve speech intelligibility and overall indoor environmental quality (IEQ) to support human health and well-being.
Every Rockfon tile and pile has its compatible grid type. Review the stone wool & metal product datasheets for the full listing of grid compatibility.
Our acoustic ceiling tiles are available in a wide variety of edge types. These ceiling tile types include square lay-in, square or angled tegular/reveal, and concealed or semi-concealed edges.
Coupled with different suspension systems, the edge design can help to hide the grid with tightly fitted panels, shadow the grid with beveled recesses, conceal the grid with panels that seem to float under it, or emphasize the grid with square or angled tegular/reveal designs.
